| Australian road rules state that all trailer with a GTM exceeding 750kgs must have brakes. |
|
|
|
|
|
|
|

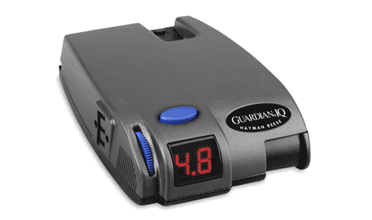

Hayman Reese Guardian IQ brake controller
Fully proportional electronic braking system
Part Number: 5900
At last, an intelligent braking system has arrived, allowing you the control you need in every towing situation. Introducing the new Hayman Reese Guardian® IQ brake controller - the latest in towing technology with brake control for up to 3 axles. The Guardian® IQ is a fully proportional trailer braking system delivering power to the trailer brakes in direct ratio to the actual physical deceleration of the tow vehicle. The unit also works proportionally in reverse for backing into tight spots.

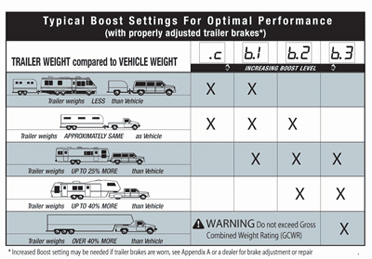

The Hayman Reese Guardian® IQ is loaded with features to improve control over your towed vehicle. Equipped with three level “Boost” functionality, Guardian® IQ allows you to incrementally increase the sensitivity of the brake control’s inertial sensor further enhancing the participation of trailer brakes during a brake event. With a push of a button you can quickly change the Boost setting to optimise your unit to cope with your towing situation, driving preference as well as the condition of your trailer brakes. The 2 digit LED readout will continuously keep you informed by depicting the electrical connection status, amount of voltage delivery to the trailer brakes as well as self diagnosing features providing you with optimal visibility.

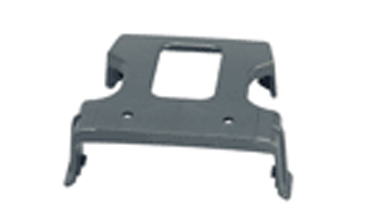

The Guardian® IQ is convenient in every situation. It ensures speedy, problem-free installations by providing “Plug & Tow” port for 2-plug adapters, pre assembled wiring harnesses as well as an innovative snap-in dash mounting kit. The quick release disconnect feature allows you to remove and store the unit when not in use. Boasting a built in self levelling mechanism the Guardian® IQ guarantees that no level adjustment is necessary, giving you more time on the road. All Hayman Reese brake controllers are covered by a 3 year warranty. |
|
   |
|
|
|
|
|

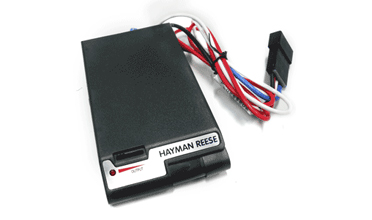

Hayman Reese electronic brake controller
Solid state electronic brake controller.
Solid state (No moving parts)
| • |
No Hydraulic connections |
| • |
No levelling required |
| • |
Compact size, mounts almost anywhere |
| • |
Three year warranty |
| • |
Unique "Sync" adjustment for different trailers |
| • |
LED indicator light |
| • |
Fingertip output control |
| • |
Soft-touch variable manual control |
| • |
Meets all regulations regarding tow vehicle/trailer stop lamp activation |
| • |
Includes mounting bracket, hardware and installation instructions |
| • |
For 12 volt negative earth systems only |
Part Number: 5300
Its simple operation, slim design and wide range of mounting options make it the perfect choice for today's towing vehicles.
Since the Hayman Reese brake controller has no moving parts or pendulums to adjust, it can be mounted in virtually any position
Mount it at any angle.
Mounting bracket and hardware are included. Its slim design and contoured shape are combined to provide more under dash clearance than any brake control on the market today. A conventional four wire hook-up is illustrated in easy to follow instructions.
Complete with sync-control the driver can control the rate of brake application from soft to aggressive my simply moving this control forward or backward. Trailer brakes may also be manually applied by squeezing the brake controller's manual control, located on the front of the unit. This also activates the trailer and tow vehicle's stop lights when brakes are applied. A perfect way to help trim trailer sway. |
|
 |
|
|
